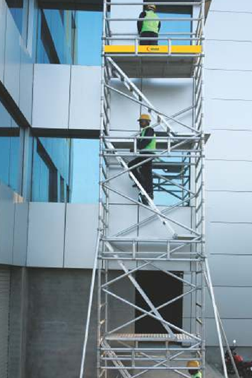

Double/ Single Width Stairway Mobile Scaffold Tower

The Stairway tower is the ideal for safe and ergonomically working at height. Thanks for the specially designed stairways it is an easily accessible tower and very user— friendly when working with tools or other equipment

This scaffold is the most useful ascending aid for activities involving frequent ascend/ descend and transport of loads. Stairway rails add to the all round safety. No tools required, Spacing of platforms every 2 meters (Optional) ease is assembling or dismantling of the tower. Ribbed rung tubing for increased grip.

Features

• Stairway rails add to the all round safety. No tools required, Spacing of platforms every 2 meters (Optional) ease is assembling or dismantling of the tower.
• Ribbed rung tubing for increased grip.
• 1400 & 1350mm Double width, 2.0 & 1.8m long slip resistant deck.
• Self closing trapdoor with locking facility
• Maximum load capacity 275 kgs upto 12m. Primed brace claw mechanism & Floating frame spigots. Easy to use toe board system.
• Castors with locking brake mechanism, Castor wheels size 6" up to 8m platform and 8" wheels for above 9m Special M .S Base frame with screw jack mechanism from 10mts platform and above.

STABILIZERS

Four stabilizers are further connected to the unit: spring loaded clamp assembly connects them to the "H frames to give a better stability required forthe structure. WHEELS The wheel and brake unit consists of adjustable nut placed on thrust bearing to take axial thrust. The wheel has been fitted with radial bearing. When the mounting surface is uneven the adjustable nut is used forthe alignment. The lever is provided to release or apply brakes.

PLATFORMS

The Aluminium platform is made up of rectangular sections framed and welded to the checkered plate with ends consisting of claws. The platform could be placed on the frames depending on working height as per requirement
