Features

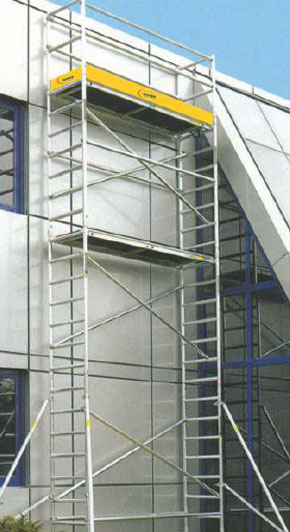

• Access tower system featuring easy climb frame rungs spacing of 282mm
• Ribbed tubing for increasing grip
• Two frame widths: Single width 850mm, and Double width 1400mm
• Safe working load of 250 kgs
• Toe board system provided
• Special spigots for easy assembly/dismanting
• Castor wheels size 6" up to 8" wheels for above 9m
• Slip resistant platform Length 2000mm for single width
• Self closing trap door with locking facility
• Slip restistant platform Length 2000mm, 2500mm and 3000mm for double with Self closing trap door with locking facility
• Primed brace claw mechanism
• Special M.S Base frame ith screw jack mechanisam from 10mts paltfomr and above

STABILIZERS

Four stabilizers are further connected to the unit: spring loaded clamp assembly connects them to the "H frames to give a better stability required forthe structure.

WHEELS

The wheel and brake unit consists of adjustable nut placed on thrust bearing to take axial thrust. The wheel has been fitted with radial bearing. When the mounting surface is uneven the adjustable nut is used forthe alignment. The lever is provided to release or apply brakes.

PLATFORMS

The Aluminium platform is made up of rectangular sections framed and welded to the checkered plate with ends consisting of claws. The platform could be placed on the frames depending on working height as per requirement
